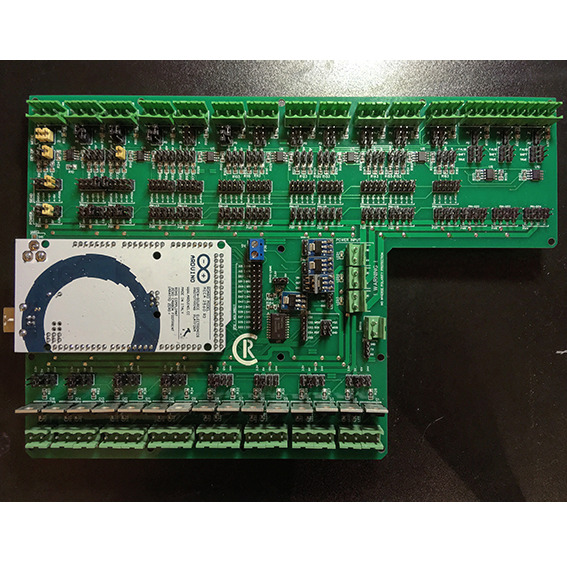

Arduino Mega/Due interface board.

This board was designed to extend I/O capabilities of Arduino Mega/Due with 15 adjustable outputs and 15 adjustable A/D inputs.

This board was designed to extend I/O capabilities of Arduino Mega/Due with 15 adjustable outputs and 15 adjustable analog or digital inputs. All 15 inputs and outputs have adjustable signal level ranging from 3.3V to 24V. In addition to that, there are 26 more GPIO with signal level of 5V, 1 UART with FTDI chip for USB translation, SPI and I2C interfaces and One-wire high speed serial communication for digital SERVO motors. This board was designed to be used alone or in daisy chain with other boards to allow the user to have more then 100 inputs and outputs with various signal levels.
